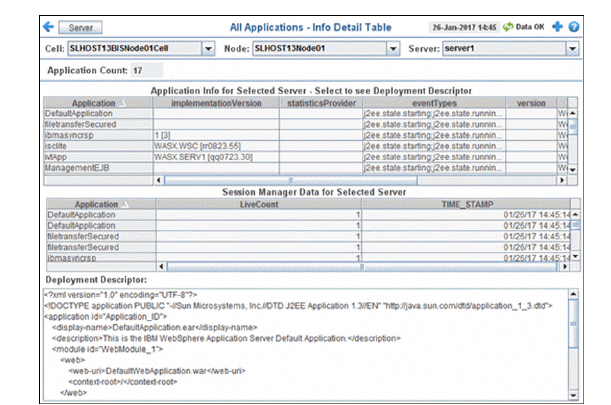

This display shows detailed application information and deployment descriptors for all web application sessions on a selected server. Choose a cell, node and server from the drop-down menus. Select an application in the upper table to see the deployment descriptor in the lower portion of the display.
|
Filter By: |
||||
|
|
Cell: |
Choose the cell for which you want to show data. |
||
|
|
Node: |
Choose the node for which you want to show data. |
||
|
|
Server: |
Choose the server for which you want to show data. |
||
|
Fields and Data: |
|
|
|
|
|
|
Application Count |
The number of web applications in the display. |
||
|
Application Info Table Each table row is a different application. Click a row to see data in the Deployment Descriptor table. |
||||
|
|
Application |
The name of the application. |
||
|
|
implementationVersion |
The application version. |
||
|
|
statisticsProvider |
The name of the statistics provider. |
||
|
|
eventTypes |
A list of application events. |
||
|
|
version |
The application version. |
||
|
|
modules |
A list of application modules. |
||
|
|
TIME_STAMP |
The date and time of the last data update. |
||
|
Session Manager Data Table Each table row is a different application. |
||||
|
|
Application |
The name of the application. |
||
|
|
LiveCount |
The number of connections for the application. |
||
|
|
TIME_STAMP |
The date and time of the last data update. |
||
|
Deployment Descriptor: Provides details about the application deployment. |
||||
