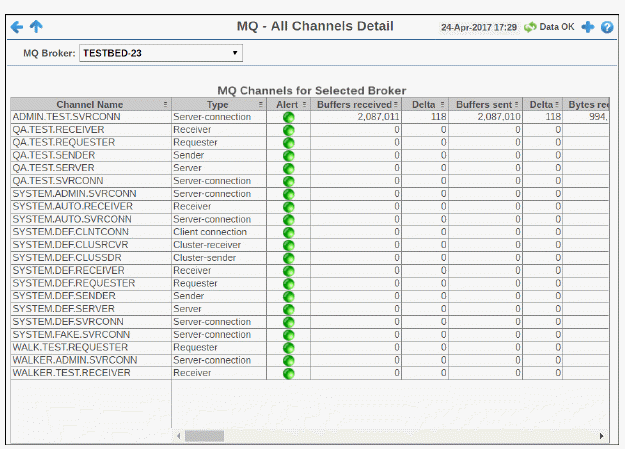

All Channels Table

View detailed utilization metrics and parameter settings for MQ Channels on a broker. Metrics include total and delta counts for buffers received/sent. Parameter settings such as MQIACH_KEEP_ALIVE_INTERVAL, MQIACH_HDR_ COMPRESSION and MQIACH_MAX_MSG_LENGTH are shown.

Each table row is a different channel. Inactive channels are shown in dark red, active channels are shown in green.

Use this display to quickly identify channels with performance issues and confirm channel configurations.

Note: This display contains vendor data. Refer to vendor documentation for details.

MQ Broker		Choose a broker to display.
MQ Channels for Selected Broker Table Each table row is a different channel on the selected broker. Column values describe the channel.
	Channel Name	The name of the channel.
	Type	The type of channel.
	Alert	The current alert severity: Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
	Buffers Received	The number of buffers received.
	Delta	The number of buffers received since the last data update.
	Buffers Sent	The number of buffers sent.
	Delta	The number of buffers sent since the last data update.
	Bytes Received	The number of bytes received.
	Delta	The number of bytes received since the last data update.
	Bytes Sent	The number of bytes sent.
	Delta	The number of bytes sent since the last data update.
	Batches Completed	The number of batches completed.
	Delta	The number of batches completed since the last data update.
	Description	A textual description of the channel.
Vendor Data
This display contains vendor data. Refer to vendor documentation for details.
	Max message length		The maximum length of messages on the channel.
	Status		The channel status.
	Transmission queue name		The name of the queue that transmits for the channel.
	Connection Name		The name of the connection.
	time_stamp		The date and time of the last data update.
	conn		The name of the connection.
