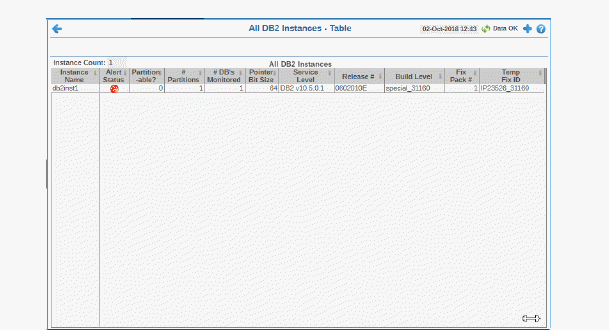

All Instances Table

This display provides a list of all DB2 instances, configuration details about each instance and their alert status. Each row in the table is a different DB2 instance.

Click a column header to sort column data in numerical or alphabetical order. Investigate by clicking a row to view details for an instance in the Instance Summary display.







Instance Count

The number of instances in the table.





Instance Name

The name of the instance.





Alert Status

red_indicator_light00046.gif Red indicates that one or more metrics exceeded their ALARM LEVEL threshold.

yellow_indicator_light00047.gif Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold.

green_indicator_light00048.gif Green indicates that no metrics have exceeded their alert thresholds.





Partitionable?

Indicates whether the instance can be partitioned.

0 is No

1 is Yes





# Partitions

The number of partitions for the instance.





#DB’s Monitored

The number of databases monitored.





Pointer Bit Size

The pointer bit size (e.g. 64).





Service Level

The installed DB2 software release version.





Release #

The installed DB2 software release number.





Build Level

The installed DB2 software build number.





Fix Pack #

The number of the installed DB2 Fix Pack.





Temp Fix ID

The IBM fix ID.
