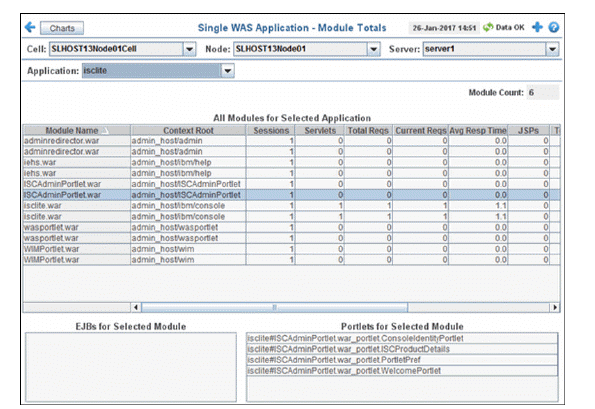

View performance metrics for a web application on one server. Choose a cell, node, server and application from the drop-down menus. Each row in the upper table is a different module for the selected application. Select a row to populate the lower tables.
|
Filter By: |
|||
|
|
Cell: |
Choose the cell for which you want to show data. |
|
|
|
Node: |
Choose the node for which you want to show data. |
|
|
|
Server: |
Choose the server for which you want to show data. |
|
|
|
Application: |
Choose the application for which you want to show data. |
|
|
Fields and Data: |
|
||
|
|
Module Count |
The number of modules in the display. |
|
|
All Modules Table Each table row is a different module. Column values describe the module. Select a module to see EJBs and Portlets for the module in the lower tables. |
|||
|
|
Module Name |
The name of the module. |
|
|
|
Context Root |
The context root. |
|
|
|
Sessions |
The current number of sessions. |
|
|
|
Servlets |
The current number of servlets. |
|
|
|
Total Requests |
The total number of requests since the servlet was started. |
|
|
|
Current Requests |
The current number of requests. |
|
|
|
Avg Response Time |
The average amount of time to respond, in seconds. |
|
|
|
JSPs |
The current number of JSPs. |
|
|
|
Total Response Time |
The total response time, in seconds, since the servlet was started. |
|
|
|
Avg Response Time |
The average amount of time for the servlet to respond since the servlet was started. |
|
|
|
Total Requests |
The total number of requests since the servlet was started. |
|
|
|
Current Requests |
The current number of requests. |
|
|
|
Avg Response Time |
The average amount of time to respond, in seconds. |
|
|
EJBs for Selected Module List of EJBs for the selected module. |
|||
|
Portlets for Selected Module List of portlets for the selected module. |
|||
