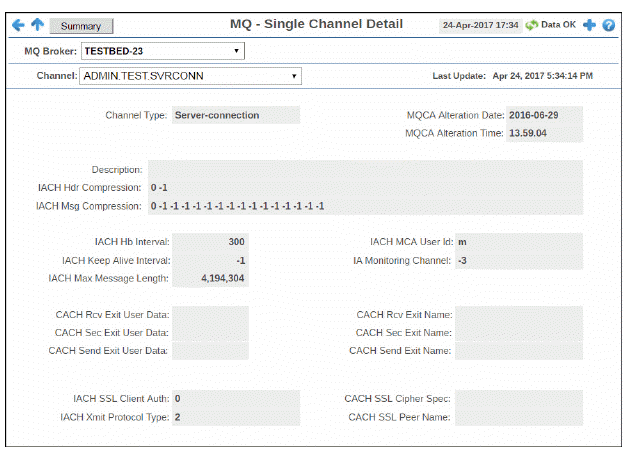

MQ Broker

Choose a broker to display.

Channel

Choose a channel to display.

Last Update

The date and time of the last data update.

Channel Type

The type of channel. For example, Server-connection.

MQCA Alteration Date

The date the MQ CA was last modified.

MQCA Alteration Time

The time the MQ CA was last modified.

Description

The description of the channel definition.

IACH Hdr Compression

The ACH header data compression techniques supported by the channel.

IACH Msg Compression

The ACH message data compression techniques supported by the channel.

IACH Hb Interval

The ACH heartbeat interval setting.

IACH Keep Alive Interval

The ACH keep alive interval setting (the timeout value for the channel).

IACH Max Message Length

The ACH maximum message length setting.

CACH Rcv Exit User Data

The user data that is passed to the receive exit.

CACH Sec Exit User Data

The user data that is passed to the security exit.

CACH Send Exit User Data

The user data that is passed to the send exit.

IACH SSL Client Auth

Denotes whether the channel needs to receive and authenticate an SSL certificate from an SSL client.

IACH Xmit Protocol Type

The transport type used.

IACH MCA User Id

The user ID used by the MCA when attempting to initiate a secure SNA session with a remote MCA.

IA Monitoring Channel

Denotes the attribute used to control the collection of online monitoring data.

CACH Rcv Exit Name

Denotes the name of the user exit program that was run by the channel receive user exit.

CACH Sec Exit Name

Denotes the name of the exit program that was run by the channel security exit.

CACH SSL Cipher Spec

Denotes the single CipherSpec for a TLS or SSL connection.

CACH SSL Peer Name

The Distinguished Name (DN) of the certificate from the peer queue manager or client at the other end of a IBM WebSphere MQ channel.
