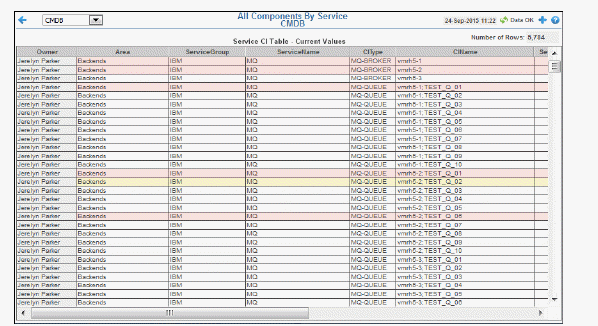

View the contents of the CMDB, without filtering, in a tabular format. Each row in the able is a different CI (for example, localhost;RTVMGR_DATASERVER).
Use the available drop-down menus or right-click to filter data shown in the display. Click Sort to order column data.
|
Row Color Code: Tables with colored rows indicate the following: |
|
|
|
|
|
Filter By: The following filtering options are typically included: |
||||
|
|
Owner: Choose an Owner to see metrics for Areas associated with that Owner. Area: Choose an Area to see metrics for Groups associated with that Area and Owner. Group: Choose a Group to see metrics for Services associated with that Group, Area and Owner. Service: Choose a Service to see metrics for Environments associated with that Service, Group, Area and Owner. Env: Choose an Environment to see metrics for Environments associated with that Service, Group, Area and Owner. |
|||
|
Fields and Data This display includes: |
||||
|
|
Number of Rows |
The current total number of rows in the table. |
||
|
|
Service CI Table |
|
|
|
|
|
|
Owner |
The Owner the CI is associated with. |
|
|
|
|
Area |
The Area the CI is associated with. |
|
|
|
|
ServiceGroup |
The Group the CI is associated with. |
|
|
|
|
ServiceName |
The Service the CI is associated with. |
|
|
|
|
CIType |
The type of CI. |
|
|
|
|
CIName |
The name or address of the CI. |
|
|
|
|
Severity |
The maximum level of alerts for the CI. Values range from 0 to 2, where 2 is the greatest Alert Severity:
|
|
|
|
|
Criticality |
The Criticality (rank of importance) specified in the Service Data Model (CMDB) by your administrator. Criticality values are listed in the Component Views - CI Service Table display, which range from A to E, where A is the highest Criticality. This value is used to determine the value for Alert Impact. |
|
|
|
|
Environment |
The Environment for the CI. |
|
|
|
|
City |
The name of the City for the CI. |
|
|
|
|
Country |
The name of the Country for the CI. |
|
|
|
|
Region |
The name of the Region for the CI. |
|
|
|
|
SiteName |
The name of the Site for the CI. |
|
Red indicates that one or more alerts exceeded their ALARM LEVEL threshold in the table row.
Yellow indicates that one or more alerts exceeded their WARNING LEVEL threshold in the table row.
Green indicates that no alerts exceeded their WARNING or ALARM LEVEL threshold in the table row.
