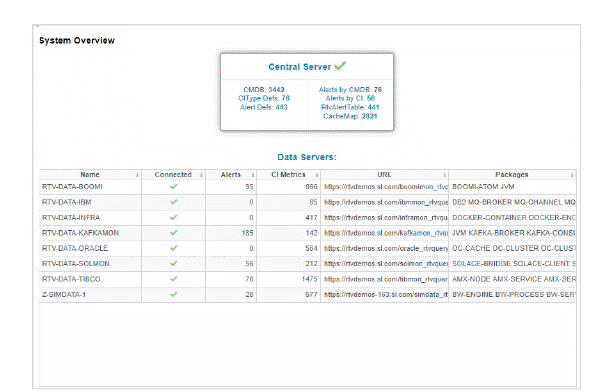

View the health status of RTViewCentral and all RTView DataServers connected to it. Use this display to find out if your data servers are all Connected. You can also get the URL for a DataServer, see which solution packages are installed and running on each (shown in the Packages field) and the number of CI Metrics that each data server is sending and compare the number of alerts among them.
The Central Server metric card shows Configuration Server-related metrics on the left:
CMDB The number of CIs in the CMDB.
CIType Defs The number of CI Type definitions.
Alert Defs The number of alert settings and override definitions.
And on the right the Central Server metric card shows Alert Server and Directory-related metrics:
Alerts By CMDB The number of Services in the CMDB that currently have at least one associated alert.
Alerts By CI The number of CIs in the CMDB that currently have at least one associated alert.
RtvAlertTable The number of currently active alerts in the system.
CacheMap The number of entries currently in the directory table.
You can hover your mouse over the Central Server metric card to get more details.
The Data Servers table contains a row of data for each connected data server. You can search, filter, sort and choose columns to include by clicking a column header icon (to the right of each column label) and selecting Filter, Sort Ascending, Sort Descending or Columns. Or just click a column header to sort.
Right-click on a table cell to Export to Excel or Copy Cell Value.
