DB2 Databases View

Displays in this View are:

•

DB2 Databases Table

•

Single DB2 Database Summary

•

Partition Table

•

Partition Heatmap

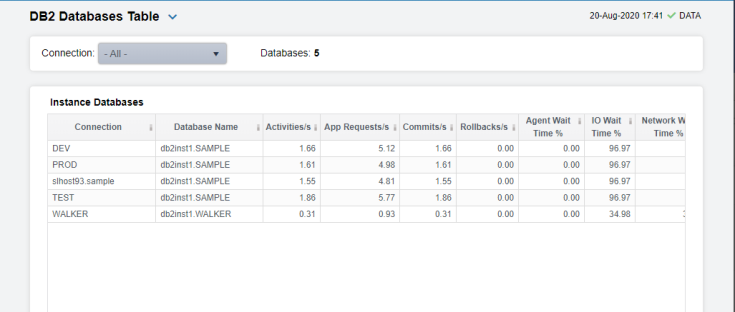

DB2 Databases Table

Select an Instance and view a list of all its databases and their performance metrics.

Use this display to identify which databases are having or causing issues for the instance.

Sort the list of databases by Alert Severity or by any other table column value.

In the bar graphs, view Wait Time Breakdown for the instance (by Activity, IO, Network and Lock), as well as Processing Time Breakdown (by Compile, Section, Sort, Transaction and Utilities) for the instance.

Click a row to drill-down to details in the Single DB2 Database Summary display.

Instance Databases Table

Each row is a different database on the selected instance. Column values describe the database.

Database Count:

The number of databases in the table.

Database

The name of the database.

Expired

When checked, performance data has not been received within the time specified by your administrator for the Expire Time.

If your administrator has also set the Delete Time, this row will be deleted if no data is received within the time specified for deletion.

Connected

When checked, the database is connected.

Severity

The alert status:

Red indicates that one or more metrics exceeded their ALARM LEVEL threshold.

Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold.

Green indicates that no metrics have exceeded their alert thresholds.

Response Time

The response time, in milliseconds.

I/O Wait Time %

The percentage wait time taken by I/O operations.

Network Wait Time %

The percentage wait time taken by the network.

Agent Wait Time %

The percentage wait time taken by agents.

Avg Deadlocks per Activity

The average number of application deadlocks per activity.

Avg Lock Escalations per Activity

The average number of application deadlock escalations per activity.

Avg Lock Timeouts per Activity

The average number of application deadlock timeouts per activity.

Avg Lock Waits per Activity

The average number of application deadlock waits per activity.

Rows Read per Rows Returned

The number of rows read per number of rows returned.

Activities/sec

The number of activities per second.

App Requests/sec

The number of application requests per second.

Commits/sec

The number of application commits per second.

Rollbacks/sec

The number of application rollbacks per second.

Buffer Pool Hit Ratio %

The current buffer pool hit ratio, which is the total number of pool hits divided by the total number of buffer pool lookups.

Activity Wait Time %

The percentage wait time taken by activities.

Avg Request CPU Time

The average amount of CPU time used by requests, in seconds.

Compile Proc Time %

The percentage of time used for compiling processes.

Routine Time Request %

The percentage of time used for routine request processes.

Section Time %

The percentage of time used for section processes.

Section Sort Time %

The percentage of time used for sorting section processes.

BP Hit Ratio %

The current buffer pool hit ratio, which is the total number of pool hits divided by the total number of buffer pool lookups.

Transaction Time %

The percentage of time used for transaction processes.

Utils Proc Time %

The percentage of time used for utilities processes.

Activity Time (ms)

The amount of time, in milliseconds, used for activity processes.

Agent Idle Time (ms)

The amount of time, in milliseconds, that agents were in an idle state.

CPU Time (ms)

The amount of time, in milliseconds, used for CPU processes.

Processing Time (ms)

The amount of time, in milliseconds, used for processing requests.

Request Time (ms)

The amount of time, in milliseconds, used for processing requests.

DB Processing %

The percentage of time used for database processes.

DB Wait %

The percentage of time used for database waits.

# Connections

The current number of database connections.

Timestamp

The data and time this data was last updated.

Wait Time Breakdown

Shows the percentage of total wait time used for the instance categorized by:

•

Activity

•

Network

•

Lock

Processing Time Breakdown

Shows the percentage of total processing time for the instance used by the following types of actions:

•

Compile

•

Section

•

Sort

•

Transaction

•

Utilities

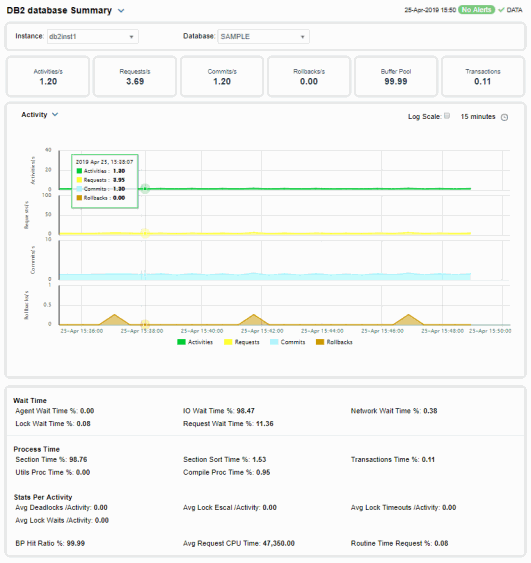

Single DB2 Database Summary

Use this display to investigate the performance and health of a database.

Select an Instance and a Database. Check main performance statistics such as database load, Commits per second, Processing Time Breakdown and Wait Time Breakdown

View trend graphs tracing Commits and Rollbacks per second, Wait and Response times, among others.

Choose a Time Range or click to specify your own.

Instance:

Choose an instance.

Database:

Choose a database.

Connected

When checked, the database is connected.

Expired

When checked, performance data has not been received within the time specified by your administrator for the Expire Time.

If your administrator has also set the Delete Time, this row will be deleted if no data is received within the time specified for deletion.

# Partitions

The number of partitions on the database.

Stats for Last 1 Second Interval

#/sec

Activities

Total number of activities in the last 1 second.

Value per second.

App Requests

Total number of application requests in the last 1 second.

Value per second.

Commits

Total number of commits in the last 1 second.

Value per second.

Rollbacks

Total number of rollbacks in the last 1 second.

Value per second.

Avg # per Activity

Deadlocks

The average number of deadlocks per activity in the last 1 second.

Lock Escal

The average number of lock escalations per activity in the last 1 second.

Lock Timeouts

The average number of lock timeouts per activity in the last 1 second.

Lock Waits

The average number of lock waits per activity in the last 1 second.

Time Spent in DB2

% Processing

% Waiting

Process Time % Breakdown

Shows the percentage of total processing time for the instance used by the following types of actions:

•

Section

•

Sort

•

Transaction

•

Utilities

Wait Time % Breakdown

Shows the percentage of total wait time used for the instance categorized by:

•

Activity

•

Network

•

Locks

BP Hit Ratio %

The current buffer pool hit ratio, which is the total number of pool hits divided by the total number of buffer pool lookups.

Rows Read / Rows Returned

The number of rows read per number of rows returned.

Overall Execution Trends

For the selected database, trend graphs trace as follows:

•

Commits/sec Traces the number of commits per second.

•

Rollbacks/sec Traces the number of rollbacks per second.

•

Network Wait % Traces the percentage of wait time used by network operations.

•

I/O Wait % Traces the percentage of wait time used by I/O operations.

•

Response Time Traces the total amount of wait time.

Log Scale

Select to enable a logarithmic scale. Use Log Scale to see usage correlations for data with a wide range of values. For example, if a minority of your data is on a scale of tens, and a majority of your data is on a scale of thousands, the minority of your data is typically not visible in non-log scale graphs. Log Scale makes data on both scales visible by applying logarithmic values rather than actual values to the data.

Base at Zero

Select to use zero (0) as the Y axis minimum for all graph traces.

Time Range

Select a time range from the drop down menu varying from 2 Minutes to Last 7 Days, or display All Data. By default, the time range end point is the current time. To enter a specific time range, click the associated ellipsis button .

To change the time range click the Open Calendar button , choose the date and time, then click OK. Or, enter the date and time in the text field using the following format: MMM dd, YYYY HH:MM:ss (for example, Aug 21, 2011 12:24 PM) and click Apply. Use the Navigation Arrows to move forward or backward one time period (the time period selected from the Time Range drop-down menu). Click Restore to Now to reset the time range end point to the current time.

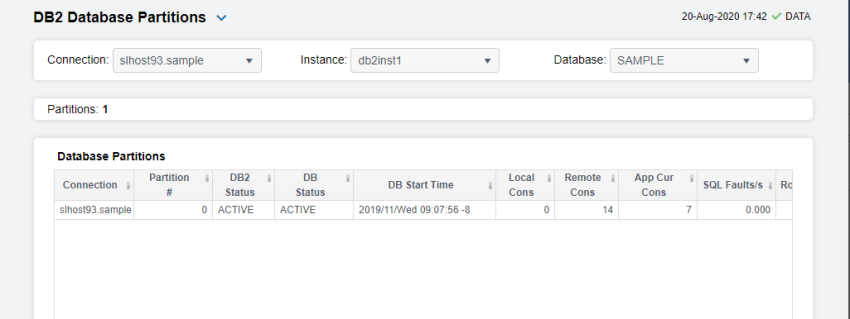

Partition Table

View a list of all partitions on a database, performance metrics for each partition, as well as setup details such as the product associated with the partition and service level.

Use this display to investigate partitioning issues on a database. Select an Instance and a Database. Sort the list by column values such as DB2 Status, Rollbacks per second and many others.

Database Partitions Table Each row is a different partition on the selected database. Column values describe the partition.
Instance:	Select an instance.
Database:	Select a database.
	Partition #	The partition number.
	Expired	When checked, performance data has not been received within the time specified by your administrator for the Expire Time. If your administrator has also set the Delete Time, this row will be deleted if no data is received within the time specified for deletion.
	DB2 Status	The current DB2 status. For example, ACTIVE.
	DB Status	The current database status. For example, ACTIVE.
	DB Start Time	The date and time the database was last started.
	Local Cons	The number of local connections.
	Remote Cons	The number of remote connections.
	App Cur Cons	The number of currently connected applications.
	SQL Faults/sec	The number of SQL faults per second.
	Rows Read /sec	The number of rows read per second.
	Rows Selected /sec	The number of rows selected per second.
	Rows Changed /sec	The number of rows changed per second.
	SQL Selects /sec	The number of SQL selects per second.
	Commits /sec	The number of commits per second.
	Rollbacks /sec	The number of rollbacks per second.
	Update/Del/Ins/Stmts /sec	The number of updates, deletions, insertions and statements per second.
	Avg Sort Time/Transaction	The average amount of time for sorting transactions.
	Product Name	The name of the product.
	Service Level	The service level for the product.
	Pool Data Hit Ratio	The current buffer pool hit ratio, which is the total number of pool hits divided by the total number of buffer pool lookups.
	Pool TmpData Hit Ratio	Refer to vendor documentation for details.
	Pool TmpIndex Hit Ratio	Refer to vendor documentation for details.
	Pkg Cache Inserts/K-Trans	Refer to vendor documentation for details.
	Lock Wait Time/K-Trans	Refer to vendor documentation for details.
	Dirty Steal Triggers/K-Trans	Refer to vendor documentation for details.
	Deadlocks & Lock Timeouts/K-Tran	Refer to vendor documentation for details.
	Avg Log Write Time / Trans	Refer to vendor documentation for details.
	% Agent Usage	The percentage used by agents.
	Agents Registered (Top)	The number of registered agents.
	Rows Read Returned Ratio	The number of rows read per number of rows returned.
	Select %	Refer to vendor documentation for details.
	Phys Buffer Pool Read Ratio	Refer to vendor documentation for details.
	Phys Buffer Pool Write Ratio	Refer to vendor documentation for details.

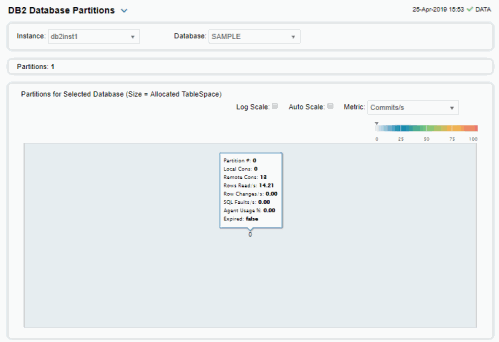

Partition Heatmap

View current alert status and performance metrics of all partitions on a DB2 database.

Answer questions such as, Are any partitions on this database reaching a state of critical health? Do I need to allocate more tablespace to any partitions? Is processing load and number of connections evenly distributed across partitions?

Each rectangle in the heatmap represents a different partition, where the rectangle color indicates the most critical alert state for items associated with that partition, and the rectangle size represents the tablespace allocation size for the partition.

Select an Instance and a Database. Use the Metric drop-down menu to view Rows Read Per Second, Rollbacks Per Second and Dirty Steel Triggers/K-Trans, among many others.

Each metric has its own color gradient bar legend that maps values to colors. By default, the Commits/sec metric is shown, which is the number of commits per second for the partition. Values range from 0 to the maximum number in the heatmap, as indicated in the color gradient bar:

Red indicates that one or more metrics exceeded their ALARM LEVEL threshold.

Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold.

Green indicates that no metrics have exceeded their alert thresholds.

Use the Labels check-box to include or exclude labels in the heatmap, use the Log Scale check-box to apply log scale and mouse over a rectangle to see additional metrics. Click a rectangle to see performance metrics for the database in which the partition resides in the Single DB2 Database Summary display.

Fields and Data:
	Labels	Select this check box to display the names of the instances at the top of each rectangle in the heatmap.
	Log	Select to this check box to enable a logarithmic scale. Use Log Scale to see usage correlations for data with a wide range of values. For example, if a minority of your data is on a scale of tens, and a majority of your data is on a scale of thousands, the minority of your data is typically not visible in non-log scale graphs. Log Scale makes data on both scales visible by applying logarithmic values rather than actual values to the data.
	Auto	Select to enable auto-scaling. When auto-scaling is activated, the color gradient bar's maximum range displays the highest value. Note: Some metrics auto-scale automatically, even when Auto is not selected.
	Metric	Choose a metric to view in the display. Each rectangle in the heatmap represents a different partition on the selected database. For additional details about the data, refer to vendor documentation.
		Commits/sec	The number of application commits per second. The color gradient bar shows the range of the value/color mapping. By default, the numerical values in the gradient bar range from 0 to the maximum value in the heatmap. The middle value in the gradient bar indicates the middle value of the range. Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
		Pool Index Hit Ratio %	The average response time, in milliseconds, for items associated with the rectangle. The color gradient bar shows the range of the value/color mapping. By default, the numerical values in the gradient bar range from 0 to the alert threshold of the Db2ResponseTimeHigh alert. The middle value in the gradient bar indicates the middle value of the range. Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
		SQL Failures/sec	The number of SQL faults per second. The color gradient bar shows the range of the value/color mapping. By default, the numerical values in the gradient bar range from 0 to the maximum value in the heatmap. The middle value in the gradient bar indicates the middle value of the range. Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
		Rows Read /sec	The number of rows read per second. The color gradient bar shows the range of the value/color mapping. By default, the numerical values in the gradient bar range from 0 to the maximum value in the heatmap. The middle value in the gradient bar indicates the middle value of the range. Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
		Rows Selected /sec	The number of rows selected per second. The color gradient bar shows the range of the value/color mapping. By default, the numerical values in the gradient bar range from 0 to the maximum value in the heatmap. The middle value in the gradient bar indicates the middle value of the range. Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
		Rows Changed /sec	The number of rows changed per second. The color gradient bar shows the range of the value/color mapping. By default, the numerical values in the gradient bar range from 0 to the maximum value in the heatmap. The middle value in the gradient bar indicates the middle value of the range. Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
		SQL Select Stmts/sec	The number of SQL statements selected per second. The color gradient bar shows the range of the value/color mapping. By default, the numerical values in the gradient bar range from 0 to the maximum value in the heatmap. The middle value in the gradient bar indicates the middle value of the range. Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
			The number of rollbacks per second. The color gradient bar, populated by the current heatmap, shows the value/color mapping. The numerical values in the gradient bar range from 0 to the maximum number of incoming messages per second. The middle value in the gradient bar indicates the middle value of the range. Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
		SQL Update/Del/Ins/Stmts /sec	The number of SQL updates, deletions, insertions and statements per second. The color gradient bar, populated by the current heatmap, shows the value/color mapping. The numerical values in the gradient bar range from 0 to the maximum number of incoming messages per second. The middle value in the gradient bar indicates the middle value of the range. Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
