IBM MQ Topic Subscribers View

This View allows you to view performance and utilization metrics for all of your IBM MQ topic subscribers. Clicking IBM MQ Topic Subscribers in the left/navigation menu opens the IBM MQ Topic Subscribers Table display, which allows you to view current alert status and performance metrics of all topic subscribers on a specific MQ broker in a table format.

• IBM MQ Topic Subscribers Heatmap: Clicking MQ Topic Subscribers Heatmap in the left/navigation menu opens this display, which allows you to view current alert status and performance metrics of all topic subscribers on a specific MQ broker in a heatmap format.
• IBM MQ Topic Subscriber Summary: Clicking IBM MQ Topic Subscriber Summmary in the left/navigation menu opens this display, which allows you to view current alert status and performance metrics for a specifig topic subscriber on a specific MQ broker.

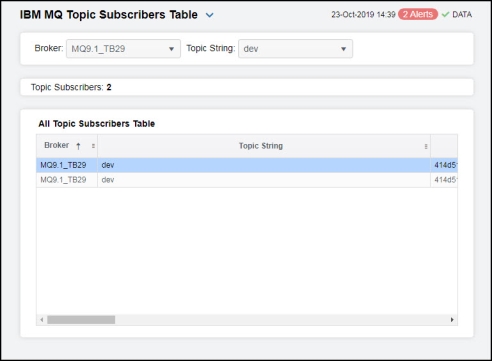

IBM MQ Topic Subscribers Table

This display allows you to view current alert status and performance metrics of all topic subscribers on a specific MQ broker in a table format.

Each row in the table contains data for a particular subscriber. You can search, filter, sort and choose columns to include by clicking a column header icon (to the right of each column label) and selecting Filter, Sort Ascending, Sort Descending or Columns.

You can also click any column header to sort and compare the values that interest you. Right-click on a table cell to Export to Excel or Copy Cell Value.

Investigate a topic by double-clicking a row, which opens the IBM MQ Topic Subscriber Summary display.





Filter By:



Broker:

Select the broker containing the topic string for which you want to view data or select All to include all topic strings.



Topic String

Select the topic string for which you want to view data or select All to view all topic strings.

Topic Subscribers

The number of topic publishers found using the filter and listed in the table.

All Topic Subscribers Table



Broker

The name of the broker.



Topic String

The name of the topic string.



Subscription ID

The ID of the subscription.



Alert Level

The current alert severity.

Red indicates that one or more metrics exceeded their ALARM LEVEL threshold.

Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold.

Green indicates that no metrics have exceeded their alert thresholds.



Alert Count

The total number of critical and warning alerts.



Active Connection

The ConnId of the HConn that currently has this subscription open.



Delta Message Count

The number of messages since the last data update.



Delta Time Stamp

The difference in time (in milliseconds) between the most recent update (Last Update/Timestamp) and the previous update.



Durable

When NO, the subscription is removed when the application that created it is closed or disconnected from the queue manager. When YES, the subscription persists even when the creating application is no longer running or has been disconnected. The subscription is reinstated when the queue manager is restarted.



Last Message Date

The date that a message was last sent to the destination specified by the subscription.



Last Message Time

The time when a message was last sent to the destination specified by the subscription.



Message Count

The number of messages put to the destination specified by this subscription.



Multicast Reliability Indicator

The multicast reliability indicator.



Rate Message Count

The rate of messages put to the destination specified by this subscription.



Resume Date

The date of the most recent MQSUB API call that connected to this subscription.



Resume Time

The time of the most recent MQSUB API call that connected to this subscription.



Subscription Type

The type of subscription, which indicates how the subscription was created.



Subscription User ID

The user ID that owns the subscription.



Expired

When checked, performance data has not been received in the time specified in the Duration region on the RTView Configuration Application > Solution Package Configuration > IBM MQ > DATA STORAGE tab.



Timestamp

The date and time of the last data update.

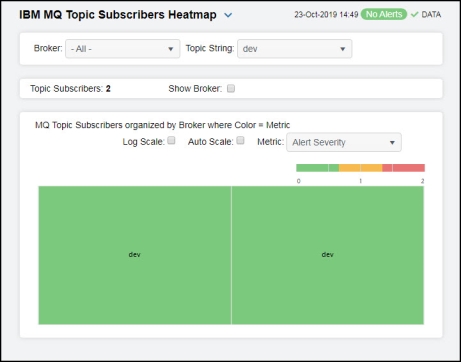

IBM MQ Topic Subscribers Heatmap

View current alert status and performance metrics of all topic subscribers on a specific MQ broker.

Each rectangle in the heatmap represents a different topic subscriber, where the rectangle color indicates the most critical alert state for items associated with that topic subscriber, and the rectangle size represents the tablespace allocation size for the topic subscriber.

Each metric has its own color gradient bar legend that maps values to colors. By default, the Alert Severity metric is shown, which is the current alert severity for items associated with the rectangle. Values range from 0 - 2, as indicated in the color gradient bar:

(2) Red indicates that one or more metrics exceeded their ALARM LEVEL threshold.

(1) Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold.

(0) Green indicates that no metrics have exceeded their alert thresholds.

Use the Show Broker check-box to include or exclude labels in the heatmap, use the Log Scale check-box to apply log scale, and mouse over a rectangle to see additional metrics. Click a rectangle to drill down on an instance in the IBM MQ Topic Subscriber Summary display.





Filter By:



Broker:

Select the MQ broker for which you want to view data..

Fields and Data



Topic Subscribers

The number of topic subscribers found by the filter and listed in the heatmap.



Show Broker

Select this check box to display the names of the brokers at the top of each rectangle in the heatmap.



Log Scale

Select this check box to enable a logarithmic scale. Use Log Scale to see usage correlations for data with a wide range of values. For example, if a minority of your data is on a scale of tens, and a majority of your data is on a scale of thousands, the minority of your data is typically not visible in non-log scale graphs. Log Scale makes data on both scales visible by applying logarithmic values rather than actual values to the data.



Auto Scale

Select to enable auto-scaling. When auto-scaling is activated, the color gradient bar's maximum range displays the highest value.

Note: Some metrics auto-scale automatically, even when Auto Scale is not selected.



Metric

Choose a metric to view in the display. For details about the data, refer to vendor documentation.





Alert Severity

The current alert severity for items associated with the rectangle. Values range from 0 - 2, as indicated in the color gradient bar, where 2 is the highest Alert Severity:

(2) Red indicates that one or more metrics exceeded their ALARM LEVEL threshold.

(1) Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold.

(0) Green indicates that no metrics have exceeded their alert thresholds.





Alert Count

The total number of critical and warning unacknowledged alerts for items associated with the rectangle. The color gradient bar, populated by the current heatmap, shows the value/color mapping. The numerical values in the gradient bar range from 0 to the maximum count of alerts in the heatmap. The middle value in the gradient bar indicates the middle value of the range.





Rate Message Count

The rate of messages put to the destination specified by the subscription. The color gradient bar, populated by the current heatmap, shows the value/color mapping. The numerical values in the gradient bar range from 0 to the maximum number of published topics in the heatmap. The middle value in the gradient bar indicates the middle value of the range.

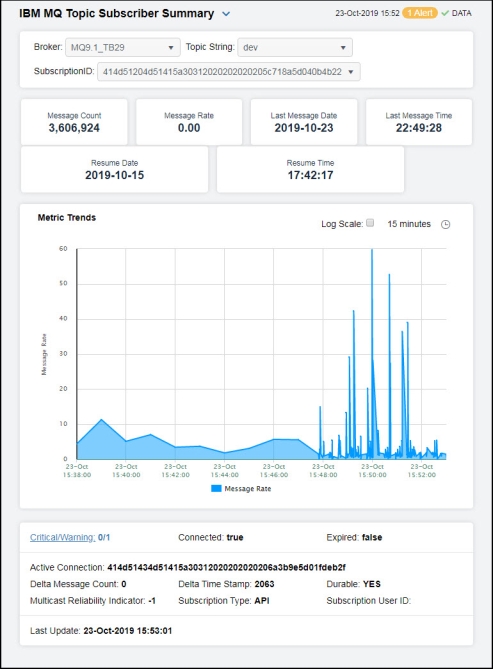

IBM MQ Topic Subscriber Summary

Use this display to view current alert status and performance metrics for a specifig topic subscriber on a specific MQ broker. Select a broker, a topic string, and a subscription ID from the drop-down menus to view data for the selected topic subscriber. Clicking on the information boxes at the top of the display (such as Message Count and Message Rate) opens the IBM MQ Topic Subscribers Table display, where you can sort and compare the performance values of all topic subscribers.

The trend graph traces the Metric Trends (Message Rate) for the selected topic subscriber. You can specify the time range for the trend graph and view data based on a log scale, which enables visualization on a logarithmic scale and should be used when the range in your data is very broad.

Clicking the Critical/Warning link at the bottom of the display opens the Alerts Table by Component display. You can hover over the trend graph to see the values at a particular time.





Filter By:



Broker:

Select the MQ broker for which you want to view data.



Topic String

Select the topic for which you want to view data.



SubscriptionID

Select the subscription ID for which you want to view data.

Fields and Data

Connected

When checked, denotes that the broker is connected.

Expired

When checked, performance data has not been received in the time specified in the Duration region on the RTView Configuration Application > Solution Package Configuration > IBM MQ > DATA STORAGE tab.

Last Update

The date and time of the last data update.

Fields and Data



Message Count

The number of messages put to the destination that are specified by this subscription.



Message Rate

The rate of messages put to the destination that are specified by this subscription.



Last Message Date

The date that a message was last sent to the destination specified by the subscription.



Last Message Time

The time when a message was last sent to the destination specified by the subscription.

Metric Trends Graph

Traces the following for the selected topic:

Message Rate: Traces the rate of messages put to the destination specified by this subscription.





Log Scale

Select to enable a logarithmic scale. Use Log Scale to see usage correlations for data with a wide range of values. For example, if a minority of your data is on a scale of tens, and a majority of your data is on a scale of thousands, the minority of your data is typically not visible in non-log scale graphs. Log Scale makes data on both scales visible by applying logarithmic values rather than actual values to the data.





Time Settings

Select a time range from the drop down menu varying from 5 Minutes to Last 7 Days. By default, the time range end point is the current time.



To change the time range, deselect the now toggle, which displays some additional date fields. You can click the left and right arrow buttons to decrease the end time by one time period (the time selected in the Time range drop down) per click, or you can choose the date and time from the associated calendar and clock icons. You can also enter the date and time in the text field using the following format: MMM dd, YYYY HH:MM:ss. For example, Aug 21, 2018 12:24 PM. Click the now toggle to reset the time range end point to the current time.





Critical/Warning

The number of critical and warning alerts.

Connected

When checked, denotes that the broker is connected.

Expired

When checked, performance data has not been received in the time specified in the Duration region on the RTView Configuration Application > Solution Package Configuration > IBM MQ > DATA STORAGE tab.

Active Connection

The ConnId of the HConn that currently has this subscription open.

Delta Message Count

The number of messages since the last data update.

Multicast Reliability Indicator

The multicast reliability indicator.

Delta Time Stamp

The difference in time (in milliseconds) between the most recent update (Last Update/Timestamp) and the previous update.

Subscription Type

The type of subscription, which indicates how the subscription was created.

Durable

When NO, the subscription is removed when the application that created it is closed or disconnected from the queue manager. When YES, the subscription persists even when the creating application is no longer running or has been disconnected. The subscription is reinstated when the queue manager is restarted.

Subscription User ID

The user ID that owns the subscription.

Last Update

The date and time of the last data update.
