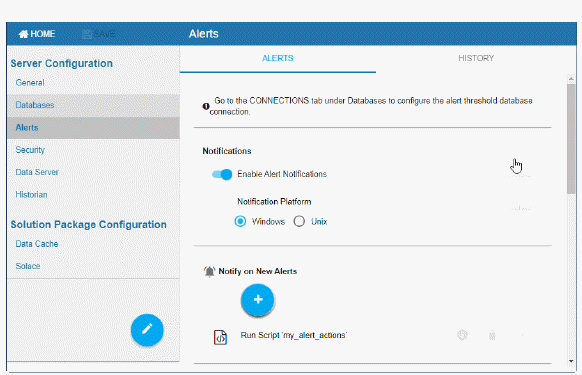

Use the ALERTS tab to configure alert notifications and persistence for high availability.
The ALERTS tab has the following fields:
|
Field Name |
Description |
|
Enable Alert Notifications |
Toggle on to enable alert notifications. By default, alert notifications will execute a script in the servers/central directory. |
|
Notification Platform |
Select the platform of the system that the alert server is running on. |
|
Notify on New Alerts |
Toggle on to notify on new alerts. This requires some additional setup: Copy the my_alert_actions(.bat or .sh) script from RTVAPM_HOME/common/bin to emsample/servers/central and modify it to execute the action you want to perform. |
|
Notify on First Severity Change |
Toggle on to notify the first time the Severity value changes on an alert. This requires some additional setup: Copy the my_alert_actions(.bat or .sh) script from RTVAPM_HOME/common/bin to emsample/servers/central and modify it to execute the action you want to perform. |
|
Notify on Cleared Alerts |
Toggle on to notify when an alert is cleared. This requires some additional setup: Copy the my_alert_actions(.bat or .sh) script from RTVAPM_HOME/common/bin to emsample/servers/central, rename it to my_alert_actions.cleared(.bat or .sh) and modify it to execute the action you want to perform. |
|
Periodically Renotify on Unacknowledged Alerts |
Toggle on to notify on the Renotification Interval for all unacknowledged alerts. This requires some additional setup: Copy the my_alert_actions(.bat or .sh) script from RTVAPM_HOME/common/bin to emsample/servers/central, rename it to my_alert_actions.renotify(.bat or .sh) and modify it to execute the action you want to perform. |
|
Renotification Interval |
Set to the interval, in seconds, on which you want to renotify on unacknowledged alerts. The default is 300 seconds. |
|
Persist Alerts |
Toggle on to persist the current alert table to the Alert Threshold Database. |
