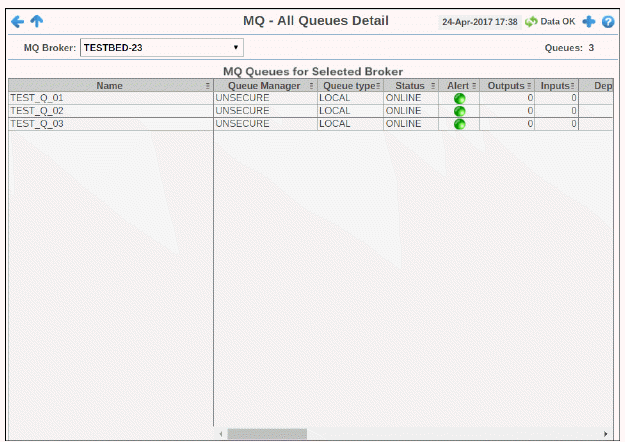

All Queues Table

View detailed utilization metrics, alert status and settings for IBM MQ queues on a broker. Metrics include total inputs/outputs, depth and Get Messages. Settings such as queue type and default priority are shown.

Choose a broker from the drop-down menu. Each table row is a different queue. Inactive queues are shown in dark red, active queues are shown in green. Investigate by clicking a row to see queue details in the Single Queue Summary display.

Use this display to quickly identify queues with performance or capacity issues and confirm queue configurations.

Note: This display contains vendor data. Refer to vendor documentation for details.

MQ Broker		Choose a broker to display.
MQ Queues for Selected Broker Table Each table row is a different queue on the selected broker. Column values describe the queue.
	Name	The name of the queue.
	Queue Manager	The name of the queue manager.
	Queue type	The type of queue.
	Status	The queue status (for example, Online).
	Alert	The current alert severity: Red indicates that one or more metrics exceeded their ALARM LEVEL threshold. Yellow indicates that one or more metrics exceeded their WARNING LEVEL threshold. Green indicates that no metrics have exceeded their alert thresholds.
	Outputs	The number of outgoing transactions.
	Inputs	The number of incoming transactions.
	Depth	The current queue depth.
	Max Depth	The maximum number of messages allowed on the queue at any one time.
	Persistence	Denotes whether or not the queue manager is persistent (PERSISTENT/NOT PERSISTENT).
	Description	The description of the purpose of the queue.
	Max Message Length	The maximum length of messages.
	Host	The IP address of the host.
	Default Priority	The default priority value for messages placed on the queue.
	Get Messages	Denotes whether or not the queue enabled to get messages (GET ALLOWED/GET NOT ALLOWED).
	Put Messages	Denotes whether or not the queue enabled to put messages (PUT ALLOWED/PUT NOT ALLOWED).
	Scope	The defined scope setting for the queue.
	Shareability	Denotes whether or not the queue is shareable (SHAREABLE/ NOT SHAREABLE).
	Usage	The queue usage type (NORMAL/TRANSMISSION).
	Connection	The name of the queue connection.
	Expired	When checked, this connection is expired due to inactivity.
	time_stamp	The date and time of the last data update.
